CBS
(Color Boosting Solution)

PRE-TREATMENT.

PRINTING.

+ FIXATION.

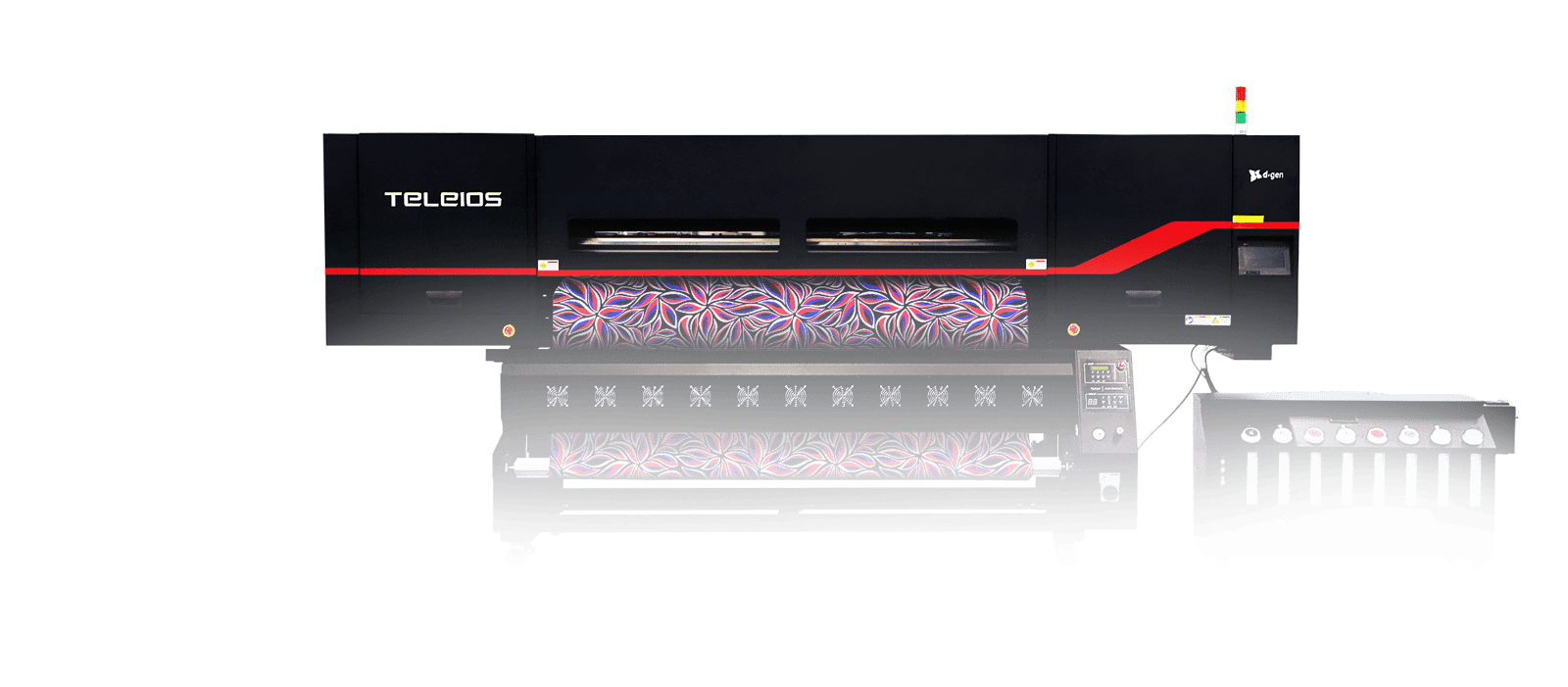

TELEIOS
OMNI PRO

Adieu! Pre-Treatment

INDUSTRIAL LEVEL
DIRECT TO TEXTILE PRINTER

Up to

70㎡/h

Up to

600 X 1,200dpi

RESOLUTION

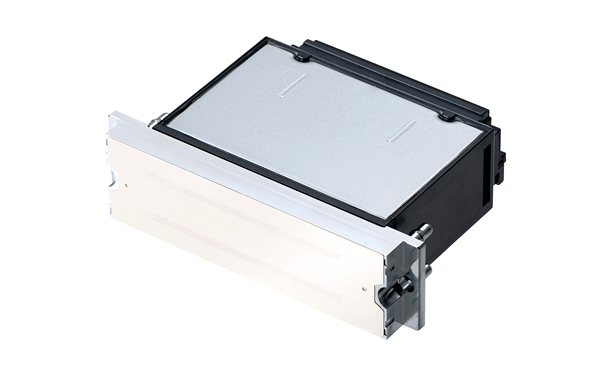

RICHO GEN6

Compared to Ricoh Gen5, the Gen6 print head can achieve a high ink drop ignition frequency of up to 50KHz to meet the demand for high-speed printing.

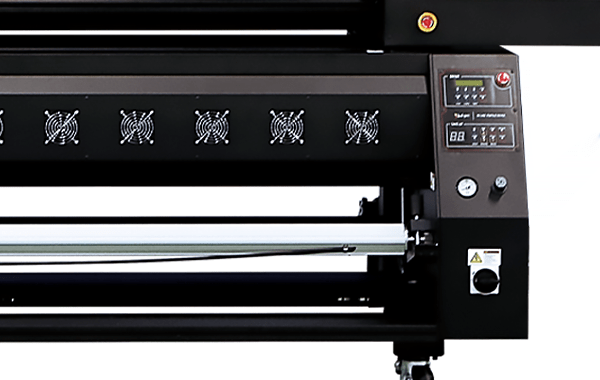

POWERFUL IN-LINE DRYER

The power capacity of the in-line textile dryer has been increased in order to meet the demands of large-scale production.

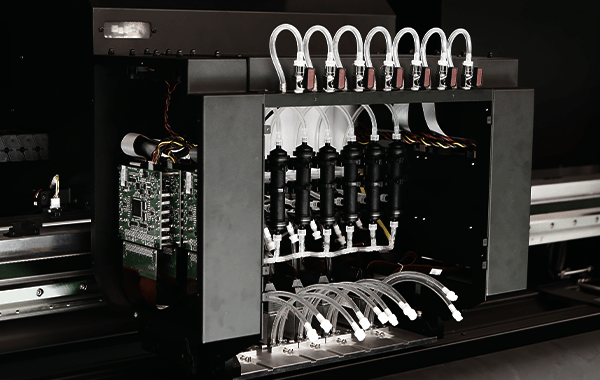

UPGRADED DEGASSING SYSTEM

The degassing system improves runability for continuous printing, reduces cleaning time, prevents missing nozzles, and minimizes excessive ink usage.

FUME EXTRACTION UNIT

The newly designed fume extraction unit efficiently extracts heat and fumes, preventing discoloration caused by fumes and oil inside the fixation unit.

ADVANCED WIPER SYSTEM

By increasing the number of wipers, the advanced wiping system significantly reduces head cleaning time and maintains optimal head performance.

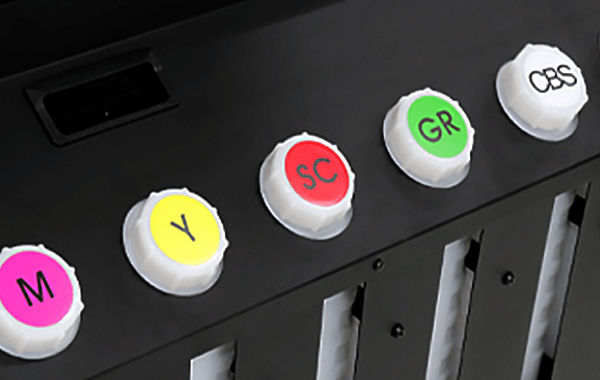

HIGH-CAPACITY INK TANKS

The ink system, which has a capacity of 5L, has been designed to facilitate effortless and convenient ink refilling, even during printing.

SPECIFICATIONS

Printing

Print Head
Ricoh, 5 Heads

Ink Type
Pigment

Number of Colour
6 + CBS

Max Printing Resolution
600 x 1,200dpi

Max Printing Width
1,830mm

PrintIng Mode
Bi-Direction/Uni-Direction

Ink

Pigment
Yellow, Magenta, Cyan, Black
+ Lc, Lm, Sc, Gr

Ink Capacity
5L

Printing Speed

600 X 600dpi 2pass
70㎡/h

600 X 900dpi 3pass
52㎡/h

600 X 1,200dpi 4pass
42㎡/h
