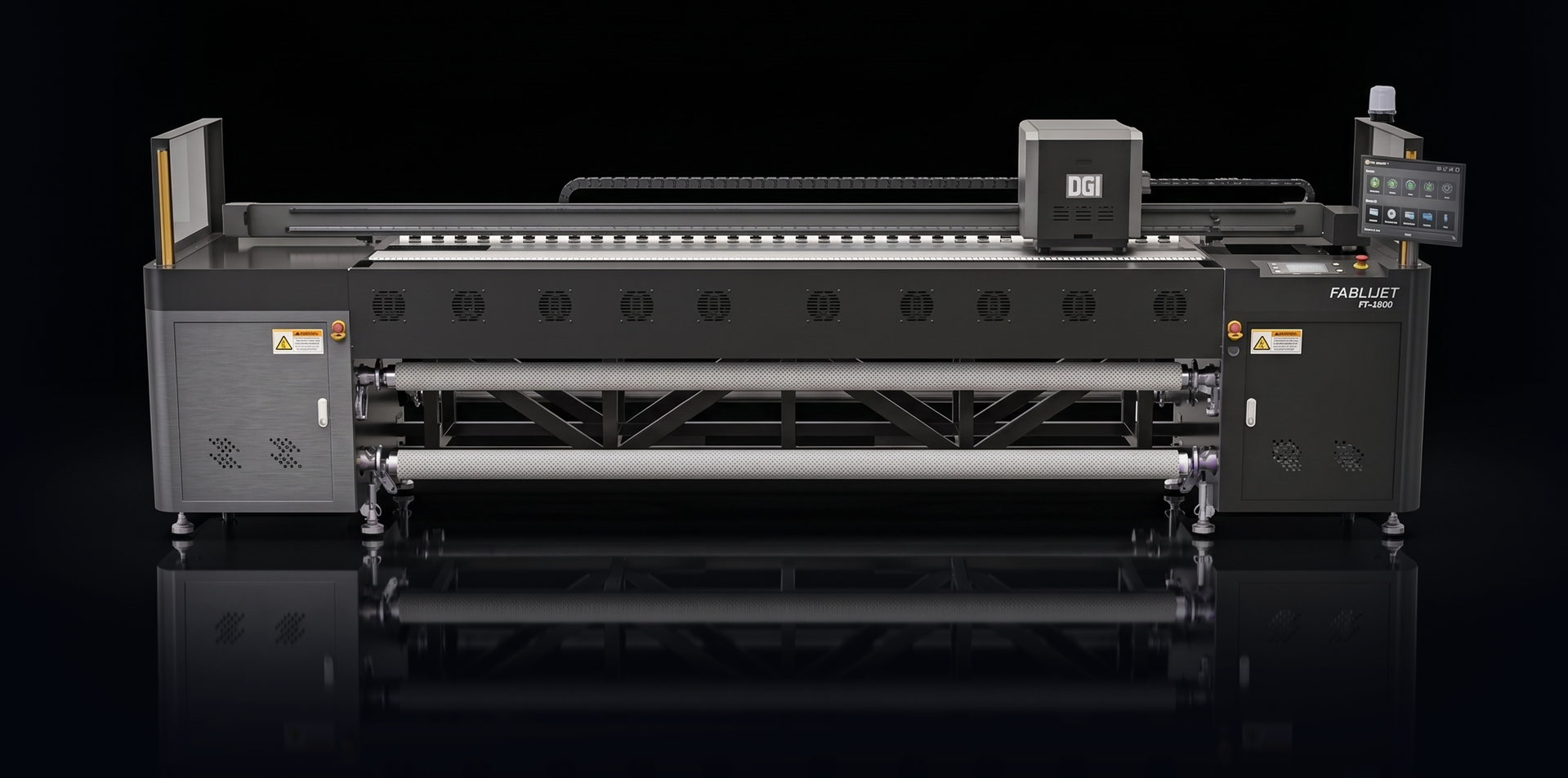

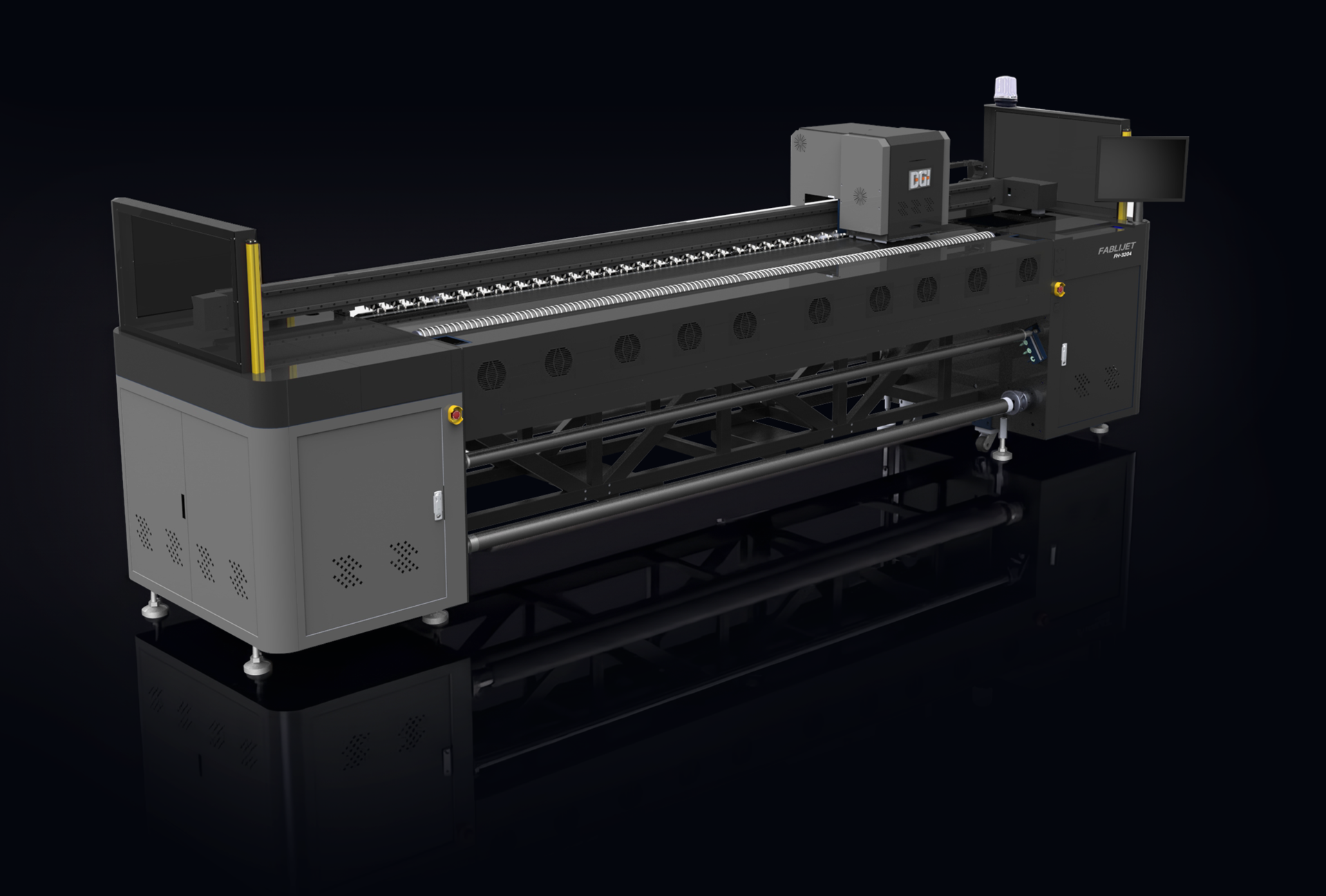

FH-3204

AWARD-WINNING PRODUCT

SGIA, Product of the year, 2019
RTR Dye-Sub on Textile

FOR THE WIDEST
APPLICATION SCOPE

HIGH PRODUCTIVITY AND A ROBUST DESIGN
FOR RELIABLE PRINTING AT ALL TIMES

PRINT DIRECTLY TO FABRICS,
AS WELL AS ONTO TRANSFER PAPER

A BROAD RANGE OF IN- AND OUTDOOR SOFT SIGNAGE APPLICATIONS, AS WELL AS INTERIOR DECORATION

Up-to

3.2m

WIDE-FORMAT PRINTER

Colour ability

FH-3204

Versatile? Multi-talented!

INDUSTRIAL LEVEL
DIRECT TO TEXTILE PRINTER


Up to

155㎡/h

SPEED


Up to

600 X 1,800dpi

RESOLUTION

KEY FEATURES

INDUSTRIAL LEVEL PRINT HEAD

Kyocera print heads are well-suited for enhancing both printing speed and quality. Also, it provides a variety of arrangements to meet customers' needs.

ADVANCED REMOVABLE PLATEN

The removable platen can change between different media types, from paper to fabric. If the platen is removed, the printer can print fabrics, including mesh.

DELICATED MEDIA COLLISION SENSOR

The collision sensor reduces the likelihood of paper and media strikes during printing, thus increasing printhead protection.

NEWLY DESIGNED WIPING SYSTEM

The wiping system keeps the cleaning blades in optimal condition by immersing them in the cleaning liquid when not in use.

POWERFUL AIR PRESSURE ROLL

To ensure stable media control and winding, the air pressure roll is equipped. Additionally, a ruler was used to guarantee a dependable media installation.

ENHANCED STANDARD DRYER

The standard dryer, equipped at the front, enhances both drying performance and printing quality by controlling the temperature up to 120°C.

SPECIFICATIONS

Printing


Print Head
Kyocera, 2/3/4 Heads

Ink Type
Water Based Dye Sublimation

Number of Colour
4 / 6

Max Printing Resolution
600 x 1,800dpi

Max Printing Width
3,200mm

Printing Mode
Bi-Direction/Uni-Direction,
Normal/Interleave

Ink



Water Based Dye Sublimation(4 Colour)
Yellow, Magenta, Cyan, Black

Water Based Dye Sublimation(6 Colour)
Yellow, Magenta, Cyan, Black, Fp, Fy

Ink Capacity
4L

Printing Speed


600 X 600dpi 2pass
155㎡/h

600 X 600dpi 4pass
95㎡/h

600 X 1,200dpi 8pass
50㎡/h

600 X 1,800dpi 12pass
35㎡/h
