SPC
Stylish Penetration Control

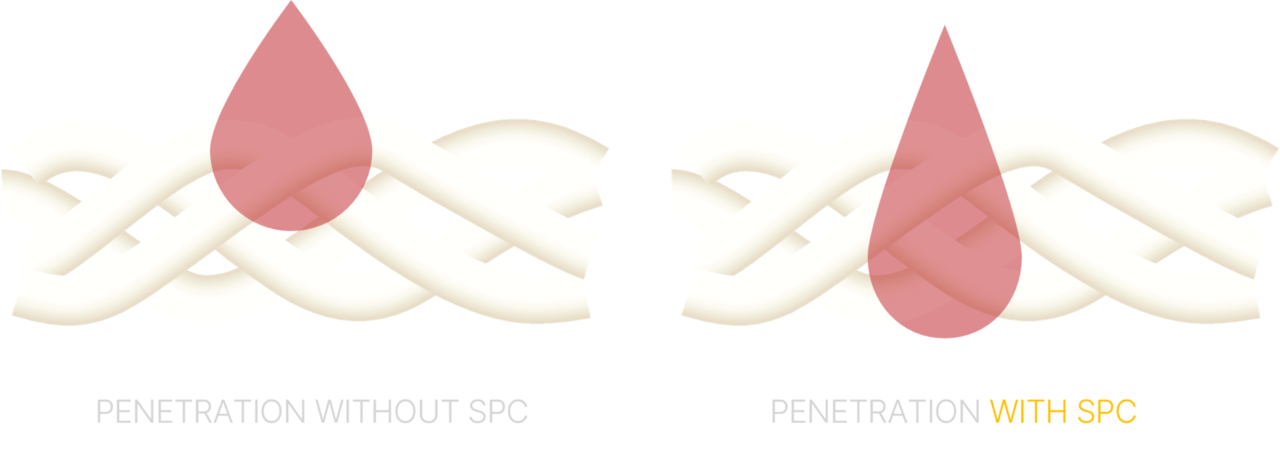

SPC is designed to enable homogeneous color
penetration into fabrics in direct-to-textile printing
by utilizing several complementary elements.
WITHOUT SPC WITH SPC
VERSATILITY
◼ Print on More Surfaces Than Ever Before
Motorized carriage height adjustment
via touch panel
SPC
Stylish Penetration Control
SPC is designed to enable homogeneous color penetration into fabrics in
direct-to-textile printing by utilizing several complementary elements.
Without SPC
With SPC
VERSATILITY
Print on More Surfaces Than Ever Before
Brilliant Color : Vibrancy and Flexibility in Every Drop
Motorized carriage height adjustment via touch panel
Feature : Clearance up to 15mm enables
printing on thick and textured
media.
Advantage :Print directly onto carpets, rugs,
and challenging textiles
impossible for standard printers.
Benefit : Expand into high-margin
markets like custom flooring,
home decor, and specialty
textiles.
Feature
Flexible ink configurations with up to 8 colors, including Light Cyan, Light Magenta, Orange, and Blue, plus optional Stylish Penetration Liquid.
Advantage
Achieve exceptionally wide color gamut for photorealistic quality, smooth gradients, and precise brand color matching.

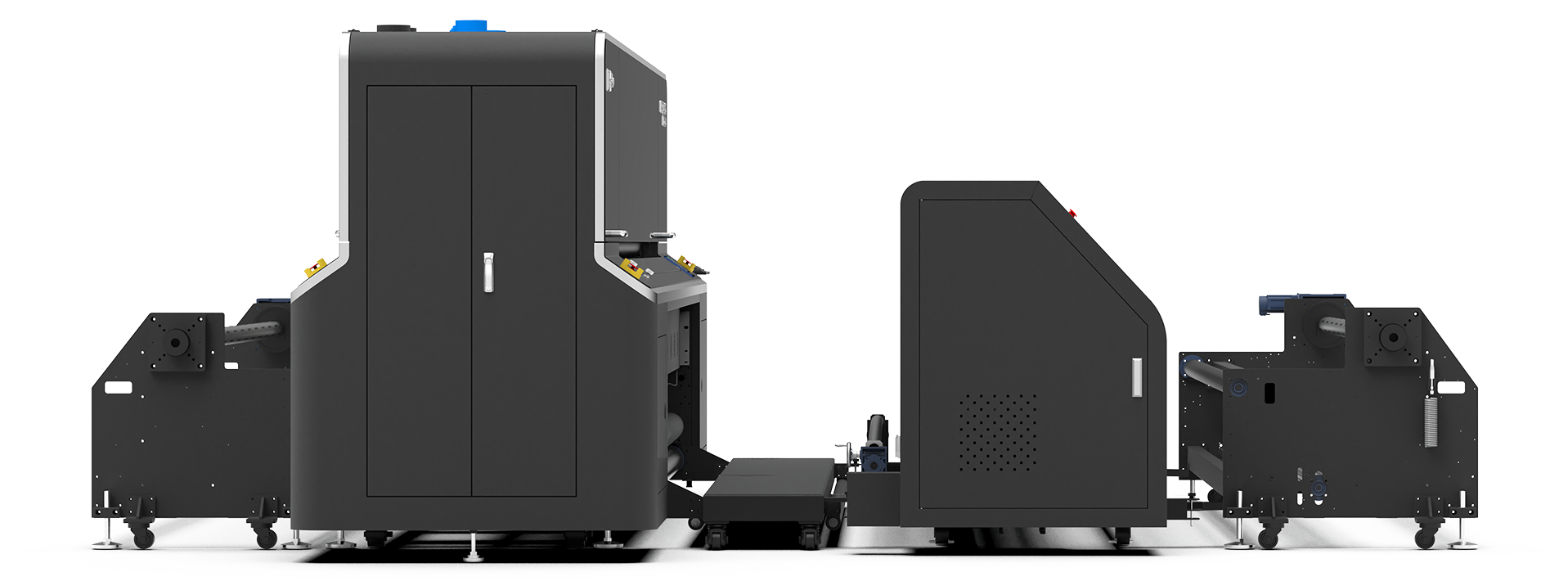

ALL-IN-ONE SINGLE STEP
UNWINDER(OPTION)
PRINTER+DRYER
SUB PLATE
FIXATION+CUTTER
WINDER(JUMBO)
WINDER(BASIC)
🔍 CLICK
KEY FEATURES
Ricoh Gen 5
The Ricoh Gen5 is the most suitable head for signage and graphics, as it reduces ink usage and improves productivity with its high-performance.
Linear Motor & Metal Encoder
The application of a high-precision linear motor and metal encoder scale provides superior stability and accurate output.
Safety Rope Switch
For maximum operator safety, emergency stop rope switches are located at both the front and rear of the machine.

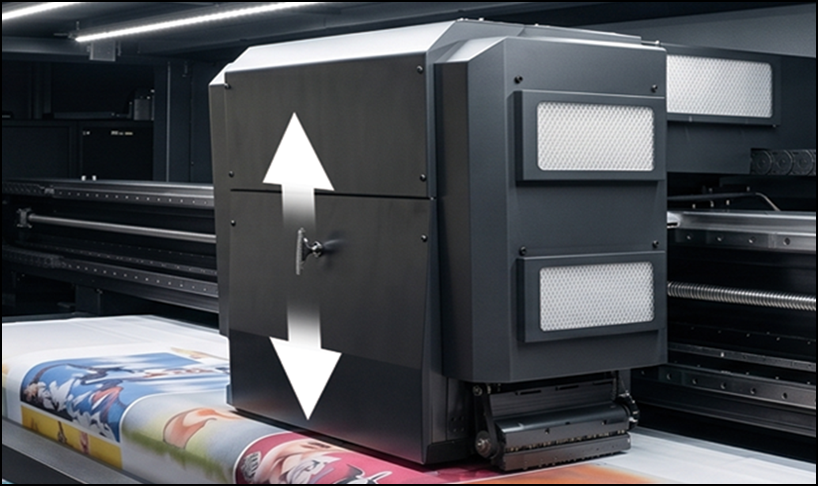

Supports media up to 15mm thickness
The carriage height can be adjusted along
the Z-axis to accommodate various media thicknesses

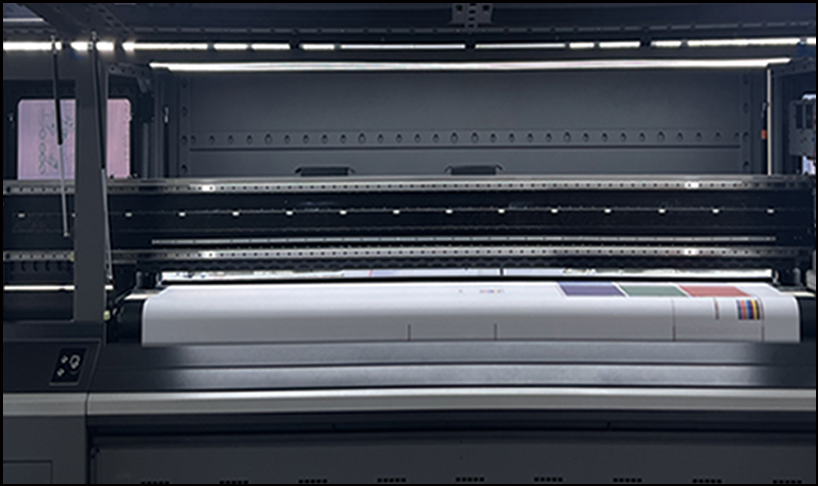

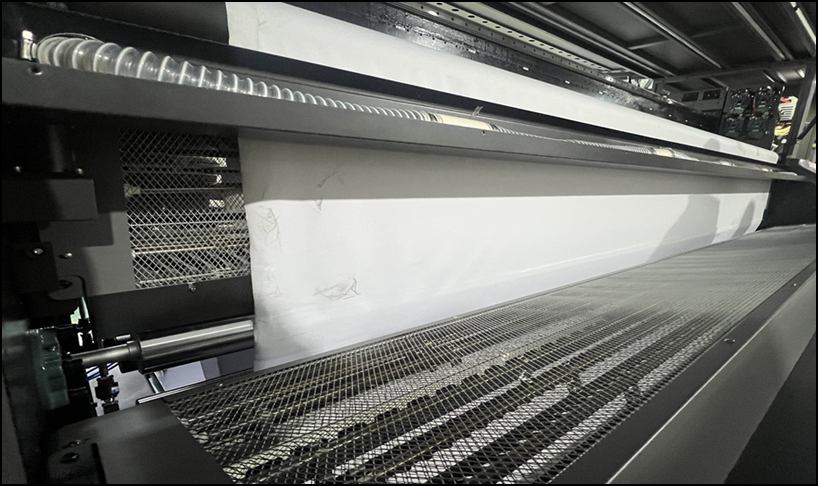

Dual Dryer System (Front & Rear)
Dual heaters are arranged in a 2-stage front and rear configuration to achieve powerful and consistent drying performance.

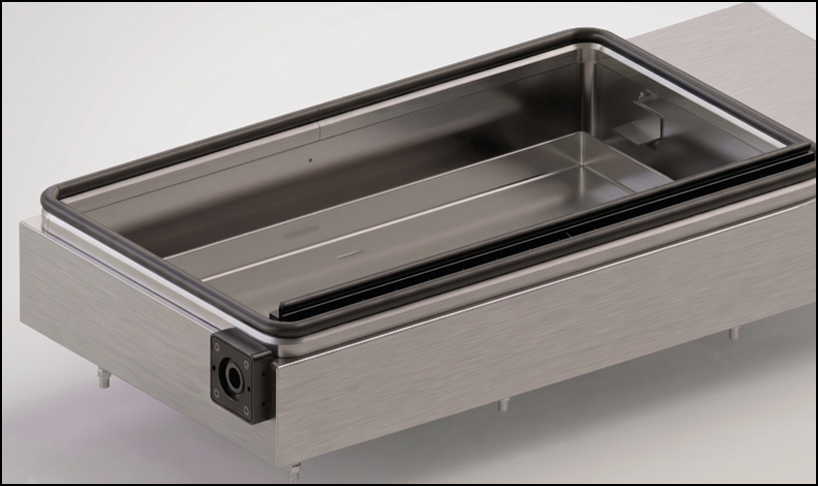

Advanced Cleaning System
The entire printhead can be wiped clean with
a single blade stroke, ensuring optimal
maintenance efficiency.

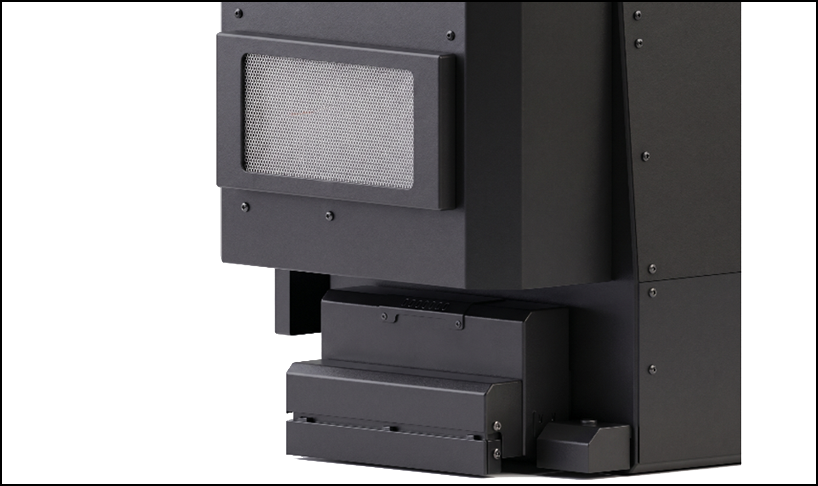

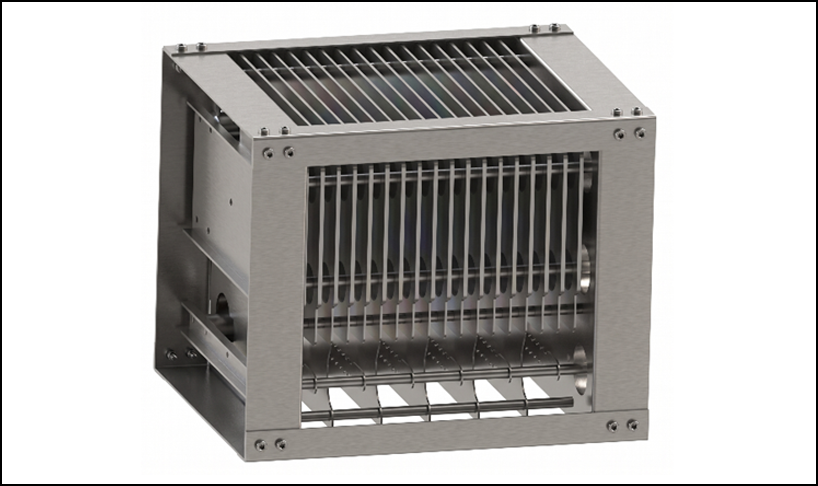

Air Circulation and Purification System
Fine particulate oil mist is effectively removed
through an electromagnetic adsorption method, maintaining a clean working environment.
Head Collision Protection System
Bi-directional anti-collision sensors are located
on both the left and right sides of the carriage to
detect and prevent potential damage.
Dedicated Waveform
The dedicated waveform, developed by DGI,
enables us to respond to customers' demands for
quality graphics and design in various ways.
Feature
Clearance up to 15mm enables printing
on thick and textured media.
Advantage
Print directly onto carpets, rugs,
and challenging textiles
impossible for standard printers.
Benefit
Expand into high-margin markets like
custom flooring, home decor, and specialty
textiles.
◼ Brilliant Color : Vibrancy and Flexibility in Every Drop
Feature
Flexible ink configurations with up to 8 colors,
including Light Cyan, Light Magenta, Orange,
and Blue, plus optional Stylish Penetration Liquid.
Advantage
Achieve exceptionally wide color gamut
for photorealistic quality, smooth gradients,
and precise brand color matching.

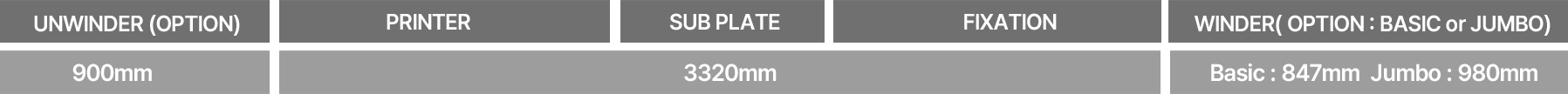

ALL-IN-ONE
SINGLE STEP
UNWINDER(OPTION)
PRINTER
SUB PLATE
FIXATION
WINDER(BASIC)
WINDER(JUMBO)
SPECIFICATIONS
Printing
Print Head
Ricoh Gen5, 12 Heads
Max Printing Resolution
720 X 3,600dpi
Max Printing Width
3,230mm
Printing Mode
Bi-Direction/Uni-Direction
Ink
Direct Sublimation
Yellow, Magenta, Cyan, Black, Orange, Blue,
Light Cyan, Light Magenta
Stylish Penetration Control
SPC
Ink Capacity
5kg

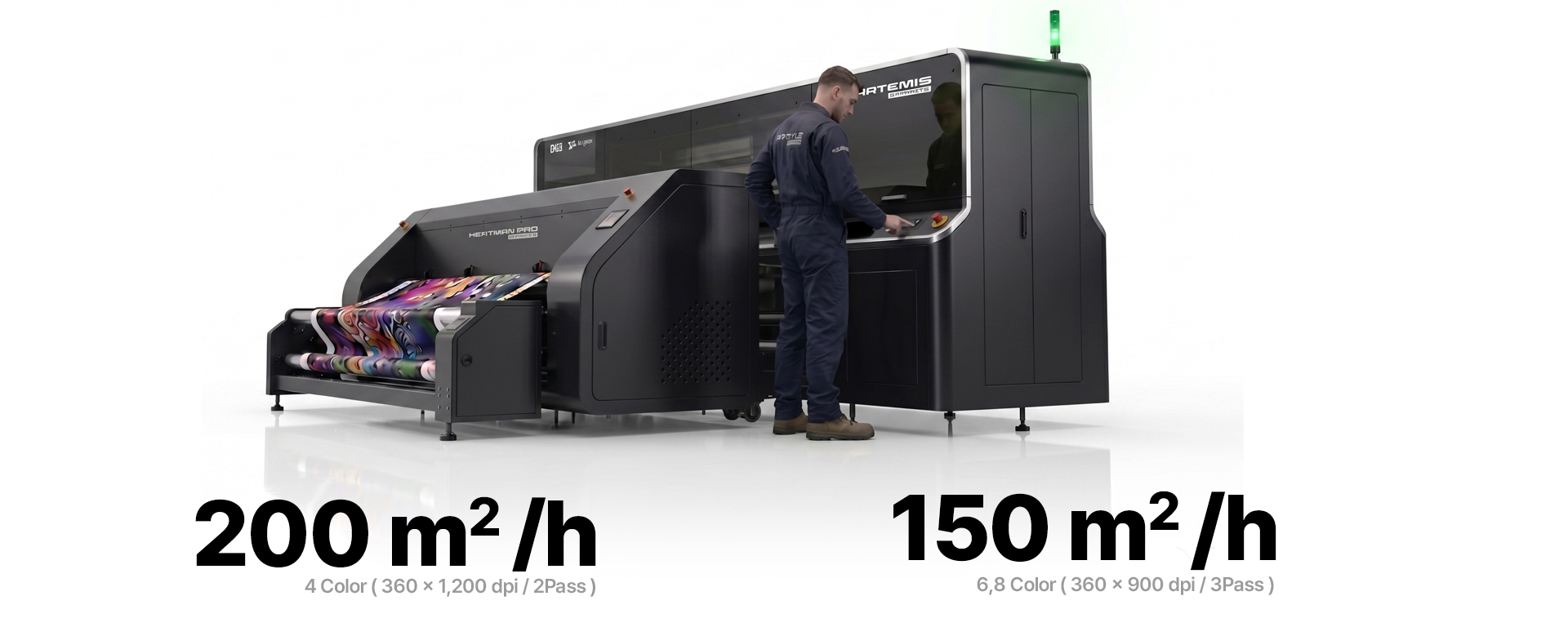

Printing Speed
4C 6/8C
360X1200dpi 360X900dpi
2pass 3pass
200 ㎡/h 150 ㎡/h
360X1800dpi 360X1200dpi
3pass 4pass
150 ㎡/h 115 ㎡/h
360X2400dpi 360X1800dpi
4pass 6pass
110 ㎡/h 76 ㎡/h
360X2400dpi
8pass
58 ㎡/h
Getting
in Touch
We look forward to responding to your questions.
We will contact you with a booster expert within
the next 24 hours.
KEY FEATURE
Ricoh Gen 5
The Ricoh Gen5 is the most suitable head for signage and graphics, as it reduces ink usage and improves productivity with its high-performance.
Supports media thickness
The carriage height can be adjusted along
the Z-axis to accommodate various media thicknesses (up to 15mm).
Dual Dryer System (Front & Rear)
Dual heaters are arranged in a 2-stage front and rear configuration to achieve powerful and consistent drying performance.
Linear Motor & Metal Encoder
The application of a high-precision linear motor and metal encoder scale provides superior stability and accurate output.
Advanced Cleaning System
The entire printhead can be wiped clean with
a single blade stroke, ensuring optimal
maintenance efficiency.
Head Collision Protection System
Bi-directional anti-collision sensors are located
on both the left and right sides of the carriage to detect and prevent potential damage.
Safety Rope Switch
For maximum operator safety, emergency stop rope switches are located at both the front and rear of the machine.
Air Circulation
and Purification System
Fine particulate oil mist is effectively removed
through an electromagnetic adsorption method, maintaining a clean working environment.
SPECIFICATION
PRINTING
INK
Print Head
Ricoh Gen5,
12 Heads
Max Printing Resolution
720 X 3,600dpi
Max Printing Width
3,230mm
Printing Mode
Bi-Direction/
Uni-Direction
Direct Sublimation
Yellow, Magenta, Cyan, Black, Orange, Blue,
Light Cyan, Light Magenta,
Stylish Penetration Control
SPC
Ink Capacity
5kg
PRINTING SPEED
4C 6/8C
360X1200dpi 360X900dpi
2pass 3pass
200 ㎡/h 50 ㎡/h
360X1800dpi 360X1200dpi
3pass 4pass
150 ㎡/h 115 ㎡/h
360X2400dpi 360X1800dpi
4pass 6pass
110 ㎡/h 76 ㎡/h
360X2400dpi
8pass
58 ㎡/h
